产品介绍
立即咨询
PDF下载产品参数
| 电机型号 | 额定电压 (VAC) |
频率 (Hz) |
转速 (RPM) |
空载电流 （mA) |
空载功率 (W) |
输出力矩 (kgf·cm) |
启动电压 (V) |
温升 (K) |
噪音 (A) |
绝缘等级 |
| 50SM21 | 100/120 | 50/60 | 2.5/3 | ≤40 | ≤4 | ≥6 | ≤85 | ≤75 | ≤40 | A 或 E |
| 100/120 | 50/60 | 4/5 | ≤40 | ≤4 | ≥4 | ≤85 | ≤75 | ≤40 | ||
| 100/120 | 50/60 | 5/6 | ≤40 | ≤4 | ≥3 | ≤85 | ≤75 | ≤40 | ||
| 100/120 | 50/60 | 15.8/18.4 | ≤40 | ≤4 | ≥1 | ≤85 | ≤75 | ≤40 | ||
| 220/240 | 50/60 | 2.5/3 | ≤20 | ≤4 | ≥6 | ≤187 | ≤75 | ≤40 | ||
| 220/240 | 50/60 | 4/5 | ≤20 | ≤4 | ≥4 | ≤187 | ≤75 | ≤40 | ||
| 220/240 | 50/60 | 5/6 | ≤20 | ≤4 | ≥3 | ≤187 | ≤75 | ≤40 | ||
| 220/240 | 50/60 | 15.8/18.4 | ≤20 | ≤4 | ≥1 | ≤187 | ≤75 | ≤40 |

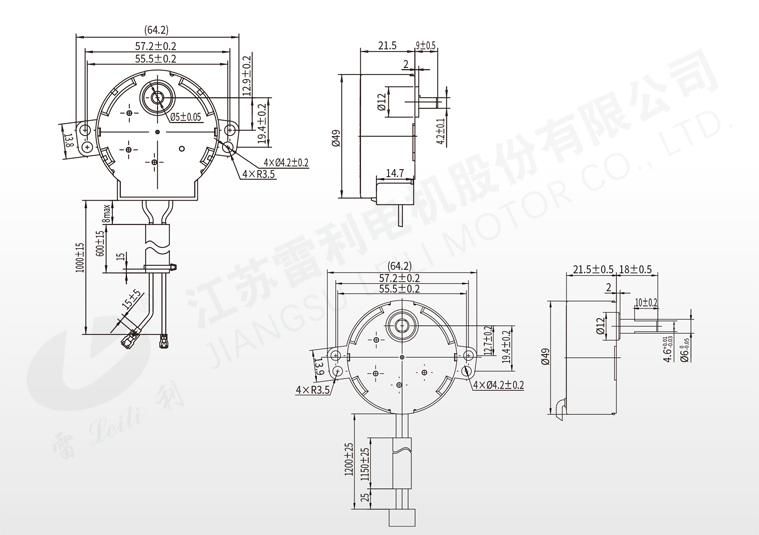

机械尺寸
