PDF下载产品参数
| 型号 Model |
额定电压 Rated Voltage (V) |
工作电压 working Voltage (V) |
额定转速 Rated Speed (RPM) |
牵出转矩 Pull Out Torque (mN•m) |
负载电流 Current (mA) |
绝缘电阻 Insulation Resisstance (MΩ) |
绝缘介电强度 Dielectric Strength Of Insulation |
| 36WS1-1 | 12 | 9~16 | 3650 | ≥ 7 | ≤ 800 | DC500V, ≥ 100MΩ | AC600V, 1s, 1mA |

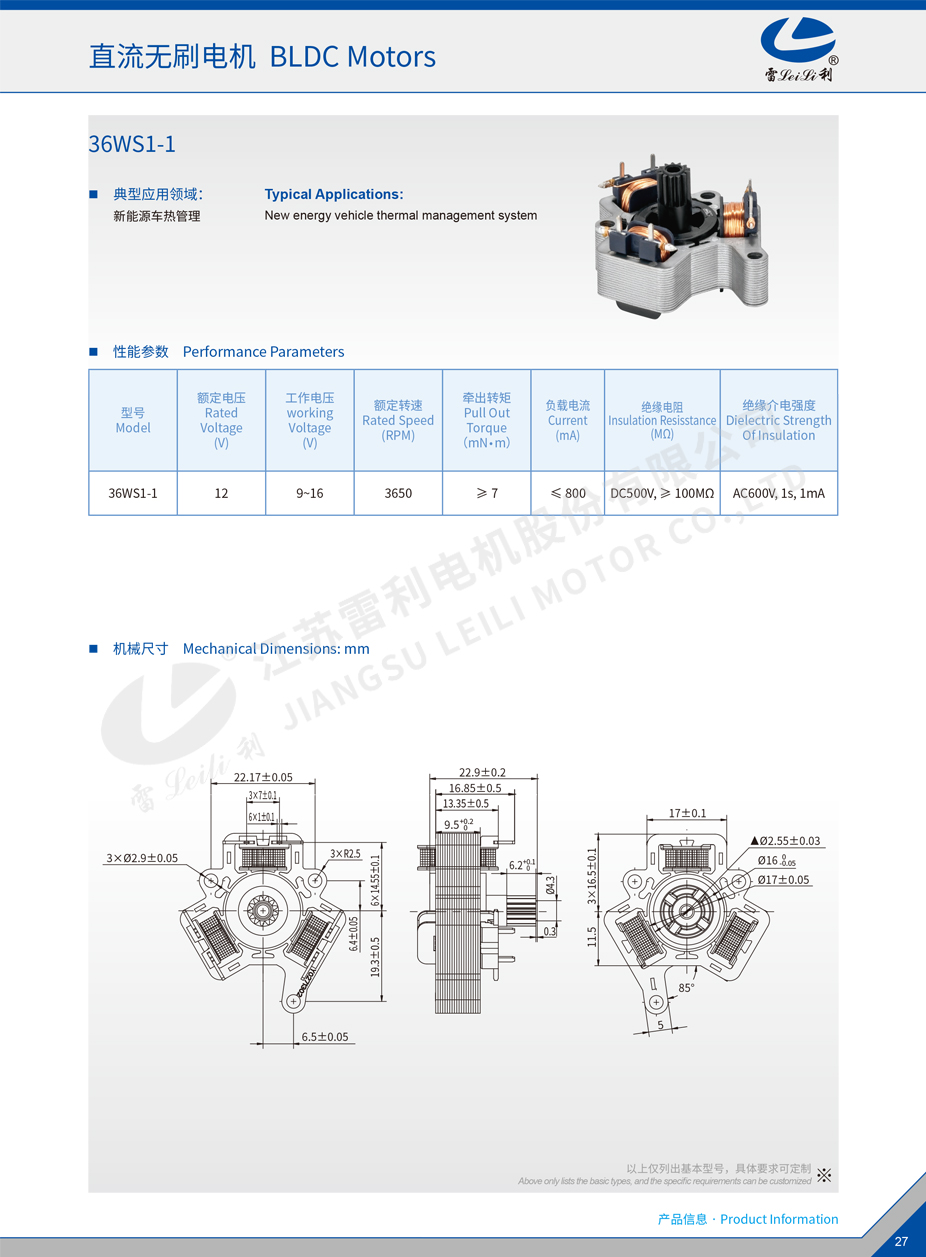

机械尺寸
