PDF下载产品参数
| 电机型号 | 电压 V |
电阻 (Ω) |
频率 (PPS) |
牵入转矩 (mN.m) |
自定位转矩 (mN.m) |
空载牵入频率 (PPS) |
空载牵出频率 (PPS) |
温升 K |
噪音 (A) |
步距角 （1-2相） |
绝缘等级 |
| 50BYJ46 | 12 | 50 | 200 | ≥196 | ≥260 | ≥320 | ≥350 | ≤60 | ≤40 | 7.5°/33.3 | E |
| 12 | 40 | 250 | ≥200 | ≥260 | ≥350 | ≥450 | ≤60 | ≤40 | 7.5°/43 | ||
| 12 | 60 | 100 | ≥392 | ≥343 | ≥200 | ≥200 | ≤60 | ≤40 | 7.5°/60 | ||
| 12 | 70 | 100 | ≥550 | ≥600 | ≥200 | ≥200 | ≤60 | ≤40 | 7.5°/99 | ||
| 24 | 110 | 250 | ≥343 | ≥260 | ≥350 | ≥450 | ≤60 | ≤40 | 7.5°/43 | ||
| 24 | 150 | 250 | ≥637 | ≥600 | ≥400 | ≥400 | ≤60 | ≤40 | 7.5°/60 | ||
| 24 | 250 | 100 | ≥588 | ≥588 | ≥200 | ≥200 | ≤60 | ≤40 | 7.5°/99 |

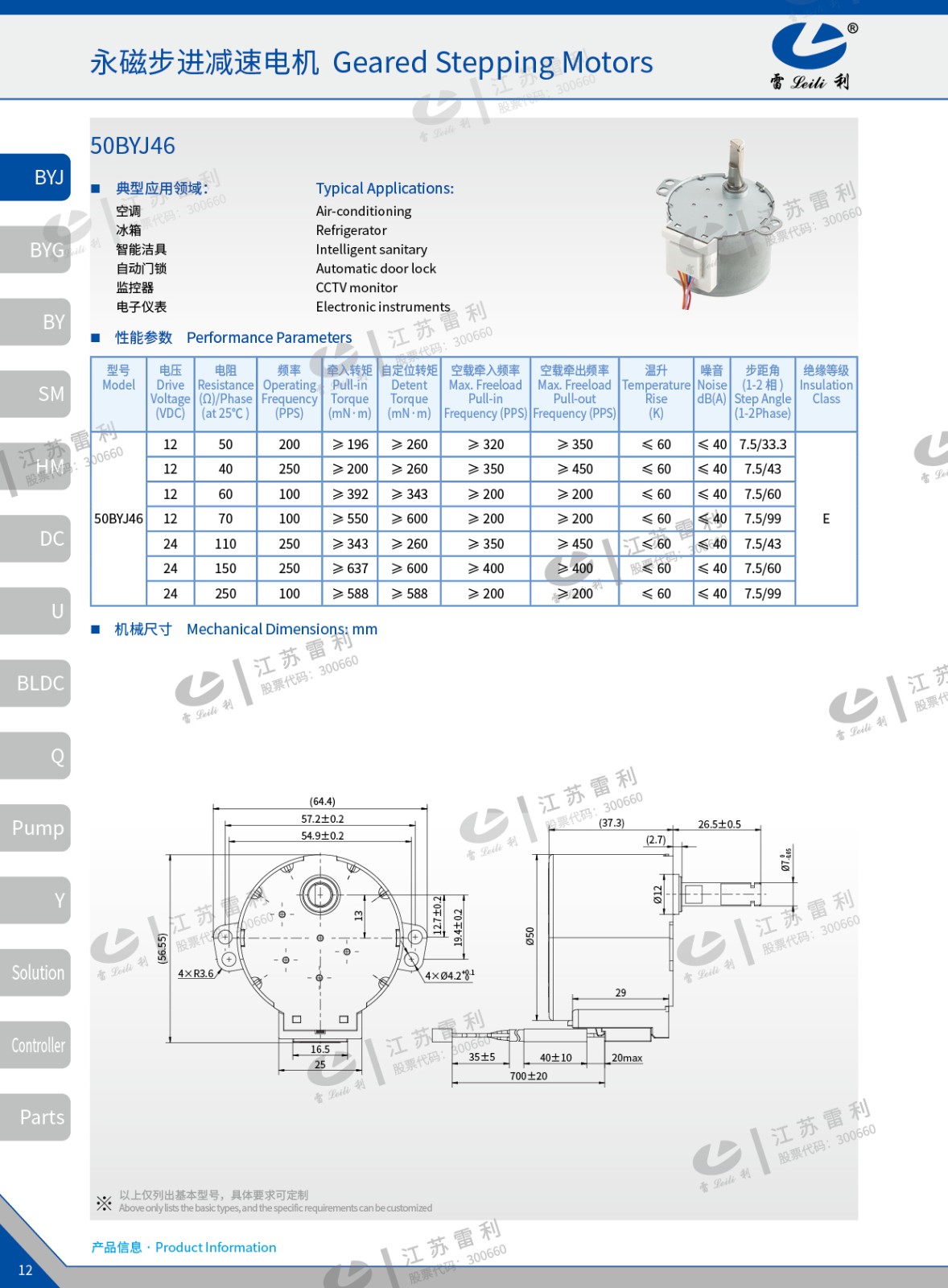

机械尺寸
