产品介绍
立即咨询

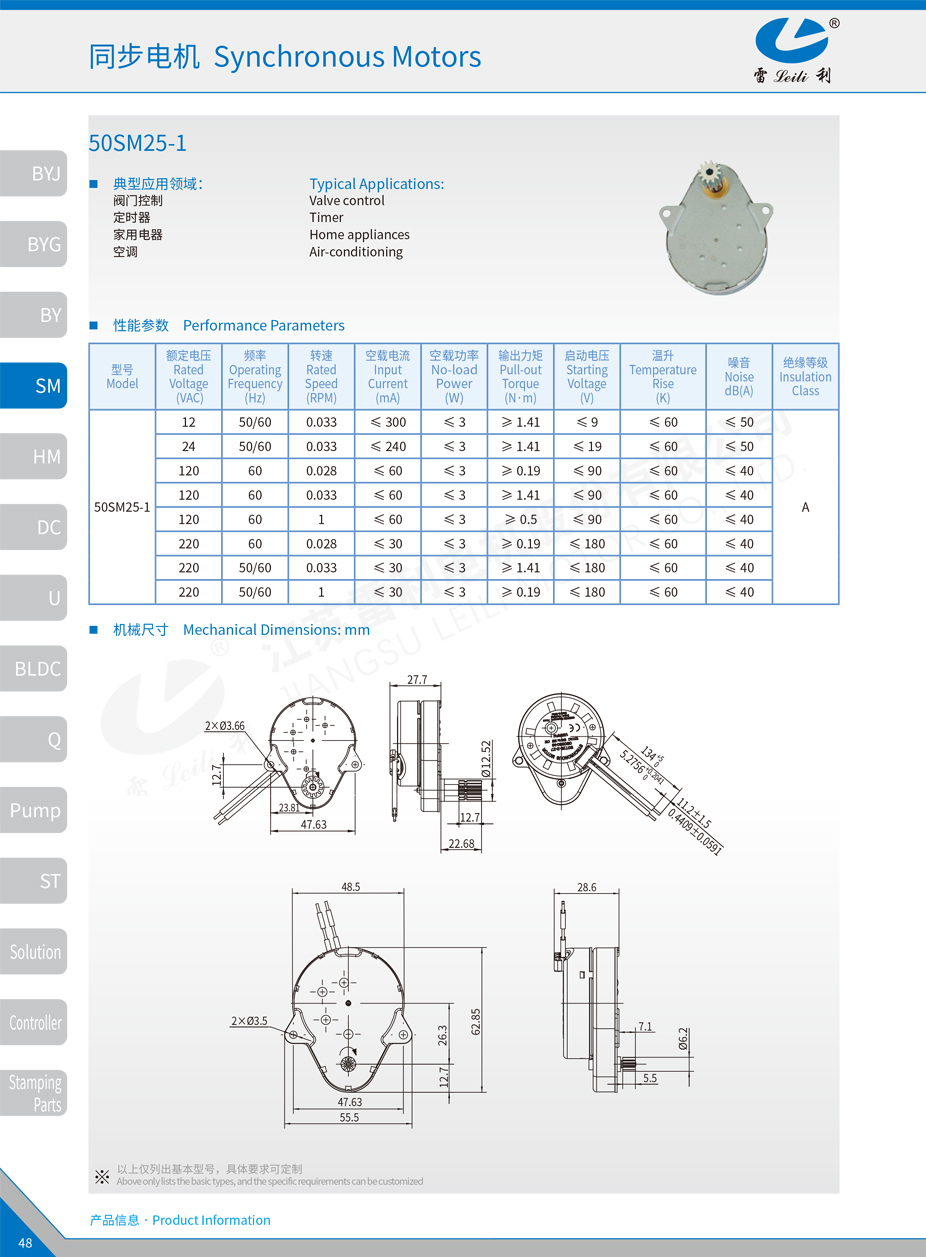

PDF下载产品参数
| 电机型号 | 额定电压 (VAC) |
频率 (Hz) |
转速 (RPM) |
空载电流 （mA) |
空载功率 (W) |
输出力矩 (kgf·cm) |
启动电压 (V) |
温升 (K) |
噪音 (A) |
绝缘等级 |
| 50SM25-1 | 12 | 50/60 | 0.033 | ≤300 | ≤3 | ≥1.41 | ≤9 | ≤60 | ≤50 | A |
| 24 | 50/60 | 0.033 | ≤240 | ≤3 | ≥1.41 | ≤19 | ≤60 | ≤50 | ||
| 120 | 60 | 0.028 | ≤60 | ≤3 | ≥0.19 | ≤90 | ≤60 | ≤40 | ||
| 120 | 60 | 0.033 | ≤60 | ≤3 | ≥1.41 | ≤90 | ≤60 | ≤40 | ||
| 120 | 60 | 1 | ≤60 | ≤3 | ≥0.5 | ≤90 | ≤60 | ≤40 | ||
| 220 | 60 | 0.028 | ≤30 | ≤3 | ≥0.19 | ≤180 | ≤60 | ≤40 | ||
| 220 | 50/60 | 0.033 | ≤30 | ≤3 | ≥1.41 | ≤180 | ≤60 | ≤40 | ||
| 220 | 50/60 | 1 | ≤30 | ≤3 | ≥0.19 | ≤180 | ≤60 | ≤40 |
机械尺寸
