PDF下载产品参数
| 额定电压 Rated Voltage (V AC) |
起动电压 Starting Voltage (DC.V) |
额定频率 Rated Frequency (Hz) |
额定电流 Rated Current (mA) |
额定功率 Rated Power (W) |
绝缘电阻 Insulation Resistance DC500V (MΩ) |
绝缘耐压 Dielectnic Strength AC600V2(mA)1s |
开阀行程 Operating Stroke (mm) |
| AC 220 | 排水电机：≤ 187 排水泵： ≤ 187 Drain Actuator: ≤ 187 Upper drain pump: ≤ 187 |
50 | 排水电机：≤ 30 排水泵：≤ 350 Drain Actuator: ≤ 30 Upper drain pump: ≤ 350 |
排水电机：≤ 6 排水泵：≤ 35 Drain Actuator: ≤ 6 Upper drain pump: ≤ 35 |
≥ 100 | AC1500 1min, 0.5mA |
19~22 |

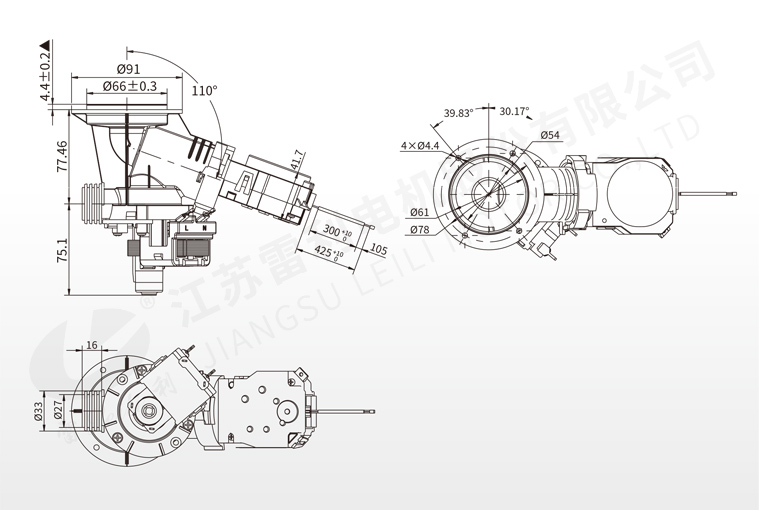

机械尺寸
